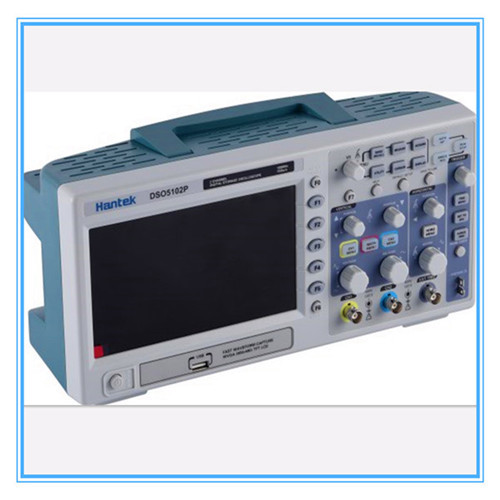

DSO5102P Digital Storage Oscilloscope

ä¸â‚¬Ã£â‚¬

Product name  Ã¯¼Å¡

DS05102P digital storage oscilloscope

äºÅ’、

Model ï¼Å¡

DS05102P

ä¸â€°Ã£â‚¬

Quantity ï¼Å¡

1 set

四、

Characteristic ï¼Å¡

•  1GSa / s real-time sampling rate and 25GSa / s equivalent sampling rate

•  bandwidth100MHz

•  Powerful triggering

• Large screen and user-friendly operation interface

• Integrated USB Host, support U disk storage, USB interface system upgrade

• 7-inch 64K color TFT true color LCD screen, clear and vivid waveform display

• Ultra-thin design, lightweight, easy to carry

äºâ€Ã£â‚¬

Technical parameters ï¼Å¡

ï¼Ë†1ï¼â€°

Basic parameters ï¼Å¡





1.

Analog Bandwidthï¼Å¡

100MHz

2.

Real-time samplingï¼Å¡

1GSa/s

3.

Equivalent samplingï¼Å¡

25GSa/s

4.

Record lengthï¼Å¡

40K

5.

Time base rangeï¼Ë†s/div):

4nS/div-80S/div

6.

Channel delayï¼Å¡

500ps

ï¼Ë†2ï¼â€°

Vertical systemï¼Å¡



1.

AD converterï¼Å¡

8bit resolution ï¼Å’Two-channel simultaneous acquisition

2.

Vertical sensitivityï¼Å¡

2mV/div~10V/div( at BNCï¼â€°

3.

Vertical displacement rangeï¼Å¡

±50V(5V/div),±40Vï¼Ë†2V/div~500mV/divï¼â€°,±2Vï¼Ë†200mV/div~50mV/divï¼â€°±400mV(20mV/div~2mV/div)

4.

Rise timeï¼Ë†At BNCï¼â€°Ã¯¼Å¡

≤3.5ns

5.

DC gain accuracyï¼Å¡

2mV/div~5mV/div±4%ï¼Ë†Sampling or averagingï¼â€°         10mV/div~5V/div±3%ï¼Ë†Sampling or averagingï¼â€°

ï¼Ë†3ï¼â€°

Trigger system ï¼Å¡



1.

Trigger Sensitivity (Edge Trigger Type)

DCï¼Å¡CH1/CH2(Typical valuesï¼â€°From DC to 10MHz for a cell, from 10MHz to 100M for the 1.5 cell, from 100MHz to 200MHz for the two cells.

EXT (typ) is 200mV from DC to 40MHz

EXT / 5 (typ) from DC to 40MHz for 1V

AC: Decrease the signal below 10Hz

High-frequency rejection:> 80kHz will attenuate the signal

Low frequency rejection: <150kHZ will attenuate the signal

Noise suppression: Reduces trigger sensitivity

2.

Trigger Level Rangeï¼Å¡

Internal ï¼Å¡Ã¯¼Ë†ch1/ch2ï¼â€°:From the center of the display±8div   internalï¼Ë†EXTï¼â€°:±1.2V external decay 5ï¼Ë†EXT/5ï¼â€°:±6V

3.

Trigger Level Accuracy (Typical)

Internal (ch1 / ch2): ± (0.3div × V / div) (within ± 4div from the center of the screen)

4.

When the rise and fall times≥20ns:

External (EXT): ± (6% of the set value + 40mV)

External decay 5 (EXT / 5): ± (6% of setting + 200 mV)

5.

Hold off Range ï¼Å¡

100ns-10s
