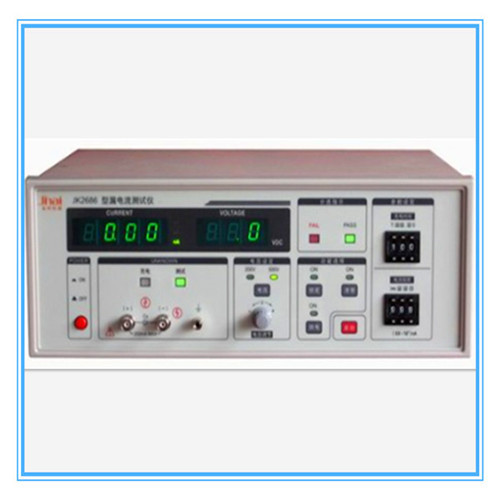

JK2686 Leakage current tester
- Minimum Order Quantity
- 1 Set
- Price
- 290 USD ($)
JK2686 Leakage current tester
一、 | Product name : | JK2686 Leakage current tester | |
二、 | Model : | JK2686 | |
三、 | Dimension: | 350mm × 135mm ×357mm | |
四、 | Quantity: | 1 set | |
五、 | Technical Parameters: | ||
| 1. | voltage test: | 0~200V, 0~500V |
2. | Voltage accuracy: | ±1%(Setting value)±1word | |
3. | Testing range: | 10nA-19.99mA, distinguishability:1nA | |
4. | Current accuracy: | ±2% reading ±2word | |
5. | Control method: | Microprocessor | |
6. | Display method: | Digital display,voltage:3digit,current:3 1/2digit | |
7. | Maximum charge current: | 200(1±20%)mA | |
8. | Charging time : | 0-99.9s,accuracy:2% Test ±0.5s | |
9. | Limit setting: | 0-99×10³(nA) | |
10. | Class: | Qualified,Unqualified,unqualified alarm | |
11. | Working temperature, humidity : | 0℃-40℃,≤90% RH | |
12. | Power required: | 198V-242V AC, 47.5Hz-52.5Hz | |
13. | Power consumption: | ≤50VA | |
14. | Price : | USD FOB ZHONGSHAN. | |
15. | Payment : | 30% in advance , the balance before shipment . | |
16. | Delivery time: | Within 7 days after receipt your deposit. | |
17. | Warranty: | 1 year. |
