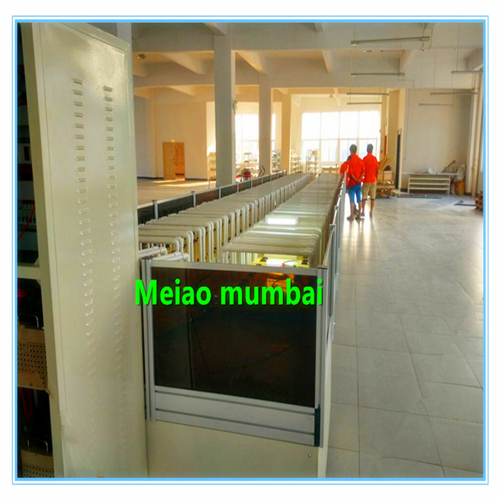

Led Panel Lights Aging Line Machine

A.

Project

LED panel lights aging line machine

B.

Dimensions

12000L  x1700W x 750H mm

C.

Quality

One set

D.

structure

Ring chain conveying, small car type independent testing aging, frequency control of motor speed

E.

function

The LED panel light aging line dedicated to the detection of sophisticated light LED products, LED lights through the high-pressure, atmospheric pressure, low pressure, shock experienced roaming voltage area. Voltage adjustment range. Use whole lamp which features sophisticated and intuitive, easy to operate, suitable for different varieties of LED lights. Power system frequency control system, easy to operate.

F.

Specifications

1.

Motor

Speed motor : china Brand Bihebi, 750W Reducer :Chines famous Brand OU fei er ,WPS80 ,1:60 type specific speed :1:6 Frequency converter : Sino-foreign joint venture's Brand ShenDao 1 HP frequency converter, frequency conversion stepless speed regulation, the linear velocity of 0.3-2 m/min adjustable.

2.

Structure

The frame is 40 x 40 rectangular steel welding production;fuselage aging line using a dedicated special aluminum alloy;nose and tail curved seal plate is made of 1.5mm cold roll forming,galvanized legs with adjustable foot cups, body 2 m period.

3.

Conveyor chain

Shanghai Chain Factory produced using eight points double pitch chain holes.

4.

Aging trolleys

Whole aging line about 47 small circular trolley combination, easy aging different products:Trolley outside dimensions: length 550"  width 440" height 430 (mm).

5.

Light blocking shield

Located on both sides of the line all the way to block all decent light shield (except non-electric operating area), using 4mm 2000combined with tinted plexiglass plate made of aluminum alloy. Effective energy-saving lamps light attenuation and better protect the eyes.

6.

Conductive Systems:

In the aging body frame along each side of the car is equipped with two(zero, Fire Wire)conductive grooves along the bilateral arrangement.

7.

Detection beat lines

Let the beat control zone is a zone.PLC control the impact of time,time is adjustable

8.

Sophisticated roaming area

Set up a zone for roaming areas, so that changes the voltage fluctuate over time, 180-220-250 changing time PLC control,time is adjustable.

9.

Full range of power

Totally five voltage regulators,each 10kw , the effective voltage area altogether designs seven zones, voltage regulator three of them 0-- 250 v adjustable, two of them voltage regulator 0-- 300 v adjustable (specific distribution can be required by party a and decide

A low pressure area: 10KW0-250V self coupling voltage regulator 1.
Atmospheric zone: 10KW0-250V self coupling voltage regulator 2.
High pressure area: 10KW0-300V self coupling voltage regulator 2.
High temperature and high pressure zone: 10KW 0-300V self coupling voltage regulator
