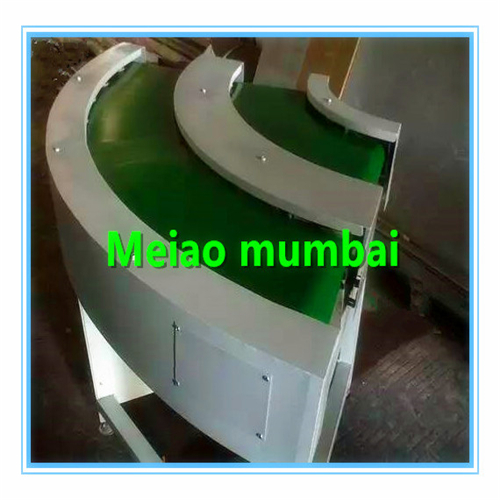

Turning Pipeline Assemblig Line Equipment

A.

Project:

turning pipeline assembling line equipment

B.

Dimension

Model type: 400 R x 400Wx90 x 750H(mm)

C.

Structure

Single way PVC belt conveyor, galvanized roller transfer,

D.

Description

Stable performance, safety and reliability, simple operation.

E.

Specification

1.

Motor :

Adopt 750W motor, linear speed 2-10m/min can be adjusted.

2.

Machine body

& frame :

Frame made by 40 x 40 square tube, stand by the same 40 x 40 square pipe production and become, below the belt by four points galvanized drum retainer and transfer; Leg match galvanized adjustable foot cup; Head plate with 1.2 mm cold plate bending rolling forming, body 2 meters one pieces.

3.

Conveying belt:

Using the Netherlands imported high quality green light delivery special PVC belt, thickness of 2 mm, width of 400 mm, belt total length is 24000 mm, ring seamless pyro-condensation connection.
